NEW model Big size for handheld portable mobile bluetooth USB
barcode receipt printer
MTP - 3 F, portable bluetooth printer (small, beautiful, powerful)
Mean features of 80mm bluetooth thermal printer:
1: support multiple languages, 20 double font switch function
2: support bluetooth superior function
3: Largest paper roll diameter: 80 mm
4: Acme, exquisitely deft structure design is easy to carry
5: Drag paper structure is easy to use, maintenance
6: equipped with high-capacity rechargeable lithium battery 7.4 V,
2500mAh
7: The height 1.5 meters to 500 free falls, cement resistance to
fall off
8: A variety of optional cable wireless interface
9: Support the client local program to upgrade
10: Equipped with Windows PC driver
11: Equipped with WM, the Android platform, such as presentation
software
and dynamic link library

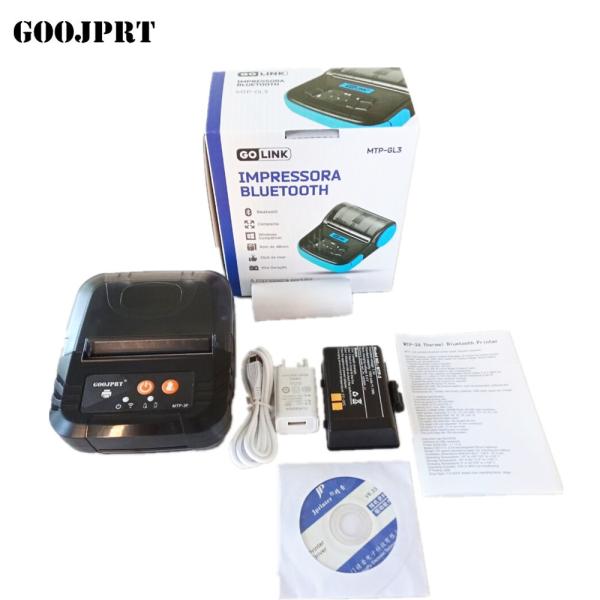

12: Accessories list - holster, belt buckle, batteries, USB cable,
paper roll,
charger
DETAILED SPECIFICATION of 80mm portable bluetooth thermal printer
| Print method | Line thermal printer |
| Paper width | 80mm |
| print width | 75mm |
| Max diameter of paper roll | 60mm |
| Dot per lie | 384 dots/line |
| internal characters | ASCII CH(8x16,9x17,9x24,12×24); GB18030(16x16,24×24) |
| Print speed | 50~90mm/s |
| Life cycle time | 100km(printing density under 12.5%)/100 million pulses |
| text and graphic Support | English, figure, symbol, Chinese, graph, curve, icon pre-stored,
barcode(CODE39EAN13EAN8 CODABARCODE128CODE93ITF) |
| QR code ,PDF417 |
| Dot pitch (resolution) | 203DPI/8 dots/mm |
| interface | bluetooth,Mini USB |
| Power | 2500mAh 7.4V rechargeable Lithium battery |
| Recharge adapter | Stand by recharging / USB cable |
| Self-check | Without paper / cover open |
| Black mark test | Supported |
| Paper feeding | Easy paper loading |
| commands | ESC/POS compatible with order sets |
| Paper cut | By hands |
| operate setting | Temperature -10°C~50°C ; Humidity 20%~85% |
| Recharge Setting | Temperature 5°C~40°C; Humidity 20%~85% |
| Storage Setting | Temperature -20°C~70°C ; Humidity 5%~95% |
COMMUNICATION AND INTERFACES CAPABILITIES
Bluetooth BR/EDR, LE 4.0
USB 2.0 Client, Type- C™ connector
NFC Passive NFC tag
Host OS Supported Windows compatibility: (CE .NET, Pocket PC,
Windows
Mobile 2002, Windows Mobile 2003 SE, Windows XP,
2000 and NT
Mobile SDK controls and other applications) Android 2.3,
4.0, 4.1, 6.0 and others, iOS 5, iOS 6, iOS 7, iOS 10
User Interface LEDs
WLAN (OPTIONAL)
WLAN 802.11ac
WLAN Security WEP, TKIP, AES encryption, WPA, WPA2, 801.1X (with
WEP, WPA
or WPA2) EAP- FAST, EAP- TTLS, EAP-TLS, PEAP, LEAP
WLAN Features
Supported
802.11r, 802.11d, 802.11i, Simultaneous WAN & BT 4.0,
Fast roaming using Pairwise Master Key (PMK) caching,
Opportunistic Key Caching (OKC), or EAP Fast Session
resumption, Support for Ad Hoc mode
Internet Protocols
over WLAN
UDP/TCP, DHCP/BootP, FTP/Mirror, HTTP, SMTP / POP3,
Telnet, LPD, SNMP
BARCODE SYMBOLOGIES
Barcode Ratios 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1
Linear Barcodes Codabar (NW-7), Code 39, Code 93, Code 128, EAN-8,
EAN-13, 2 and 5 digit add-on, Interleaved 2-of-5, UCC/
EAN 128, UPC-A, UPC-E,2 and 5 digit add-on
2D Barcodes 2D Barcodes: Aztec Code, Data Matrix, GS1/DataBar™
(RSS)
family, MaxiCode, MicroPDF417, PDF417, QR Code, TLC 39
FONTS/GRAPHICS
CPCL/ZPL (Scalable) Latin 9, Arabic, Cryillic, Hebrew,
SourceCodePro,
NotoMono (CJK), Hans (CJK), Thai (Angsana)
CPCL (Bitmap) Simplified CN: 24x24 Msung, 16x16 SimSun, Trad CN:
24x24 Mkai, 16x16 New Sans MT, Vietnamese: 16x16 Utah,
Japanese 16x16 MS Gothic
ZPL Standard fonts: 25 bitmapped, smooth-scalable (CG
Triumvirate™ Bold Condensed), scalable SourceCodePro,
scalable NotoMono (CJK), scalable Hans (CJK), Optional
fonts: Downloadable bitmapped and scalable fonts,
*Contains UFST® from Agfa Monotype Corporation
