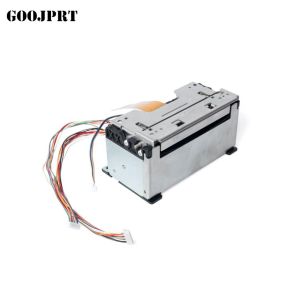

TP701 Printer Mechanism Compatible with Fujitsu FTP628MCL701,
Electrical
Product Description
Features:
2" thermal printer mechanism
Compatible with Fujitsu FTP628MCL101/103
Compact & light design
Easy paper loading
Low & high resistance
90° vertical paper feeding
Applications:
Handheld/mobile device
POS/EFT POS
Measuring equipment
Fire-fighting control equipment
Medical equipment
Industrial instruments & meters
Coin counters & sorters
Dot per Line384 dots/line
Resolution8 dots/mm
Paper Feed Pitch0.125mm
Valid Print Width48mm
Print Speed25~80mm/s
Paper Width58 mm
Paper Thickness60 to100μm (some paper in this range may not be used
because of paper characteristics)
Paper Loading Method:Drop-in easy loading
Character, number of columns:
12* 24 dots, 32 columns: ANK24* 24 dots, 16 columns: ANK8* 16 dots,
48 columns: ANK
16* 16 dots, 24 columns: ANK
Print HeadPower:4.2V to 8.5V, Ave.0.87A (at 5V)
MotorPower:4.2V to 8.5V, Max.0.5A (at 5V)
LogicPower:3.0 V to 5.25 V, Max. 0.05A (at 5V)
Dimension(W*D*H) :67.3*31.5*18.5 mm
Weight:Approximately 41g
Life Span:110 million pulses or more (print ratio12.5%)50 km or
more
OperatingTemperature:0°C~ 50°C
Operating Humidity:20 ~ 85% RH
Storage Temperature:-25° C~ 70° C
Storage Humidity:10 ~ 90% RH
Head temperature detection:Via thermistor
Paper out detection:Via photo interrupter
Head-up detection:Via photo interrupter
The 58mm printer has the Power off and press feed button,then power
on and printer will print a self-test page.It including baud
rate,language and so on.It has the Bezel with paper taken sensor
for optional.
Feature:
1.Small size,can put a length of 100 meters, a diameter of 80 mm
paper roll
2.With power switch,indicator light,and paper near-end sensor
3.Used for self-service terminal equipment products such as
self-service ticket machine is used
4.User can be adjusted according to the factors such as
voltage,paper to print blackness and print
speed
5.Support full cutting or half cutting command choose
6.Support print double QR CODE
Application:
1.Gaming
2.Healthcare
3.Tax control
4.Library Banking
5.Inquiry Machine
Specification:
| Item | KP-220 58mm kiosk ticket printer |
| Paper Spec | Print Font | Font A(12x24):32 Font B(9x17):42 GBK:16 |
| Character Size | GBK(24x24)
ASCⅡ:9x17,9x24,16x18,12x24 |
| Paper Type | Thermal paper |
| Paper Thickness | 56 to 100µm |
| Paper Width | 58mm |
| Roll core inner diameter | 13mm(min) |
| Paper Roll Diameter | Max.80mm |
| Printing | Method | Direct thermal line |
| Resulotion | 8dots/mm(432dots) |
| Speed | max.150mm/sec |
| Printing Width | 48mm |
| Printing Support | Self-defined Character | Yes |
| Graphic | Support |
| Reliability | MCBF | 100km |
| Emulation | | ESC/POS |
| Barcode | 1D | UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, CODE39, ITF, CODEBAR, CODE128,
CODE93 |
| 2D | QR code |
| Driver | Windows XP / Vista / 7 /8 /10 CE 6.0, Linux (CUPS),Android SDK |
| Interface | RS232C/TTL,USB |
| Sensors | Paper near end sensor,paper out sensor |
| Power Supply | 24VDC |
| Auto cutter | Full cut or partial cut |
| Environment | Operating Temp 0°C~50°C |
| Operating humidity 20%~85% |
| Store Temp-25°C~70°C |
Store humidity 5%~95%
|
